Guangdong Customized All in One Inverter 5KW and Lithium Battery 51.2v 100Ah 200Ah Whole House Solar Battery

Brand Name:	Langchuan
Model Number:	iy 5kwh+5kw
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Battery Type:

LiFePO4

Output Power Range:

10~20 KWh

Dimension (L*W*H):

430*230*410mm(1pc)

Weight:

43kg

System Type:

All-in-one

Type:

All-In-One

Communication Port:

CAN, Rs485, Wifi

Protection Class:

IP54, IP65

Grid Connection:

Off Grid

Inverter Matched:

Bluesun Goodwe Deye Growatt Sungrow,etc

OEM/ODM:

Accepatable

Nominal Voltage:

51.2Volts

Capacity:

100Ah 200Ah 300Ah

Communication:

RS485/WIFI

Product Description

Product Paramenters

	5KWh+5KW	10KWh+5KW	15KWh+ 5KW
Model	IYP-5KWH+5KF1-A1	IYP-10KWH+5KF1-A1	IYP-15KWH+5KF1-A1
Battery
Voltage	51.2V
Battery capacity	100Ah	200Ah	300Ah
Charge voltage	58.0V
Discharge cut-off voltage	42.0V
Charge current	50A
Max charge current	100A
Discharge current	100A
Max discharge current	100A
Max peak current	200A
Communication method	RS485/CAN
Inverter
Power	5KW
Output Voltage	230VAC
Frequency	50Hz
Input power (PV)	5KW
Input voltage range (PV)	120~430VDC
Communication connect port	RS485/WiFi
General Parameters
Material/ Colour	Metal/ White
Size	430230850mm	4302301210mm	4302301570mm
Weight	55kg (about)	97kg (about)	139kg (about)
Temperature	Charge：0℃-50℃ Discharge：-15℃-60℃

Products Description

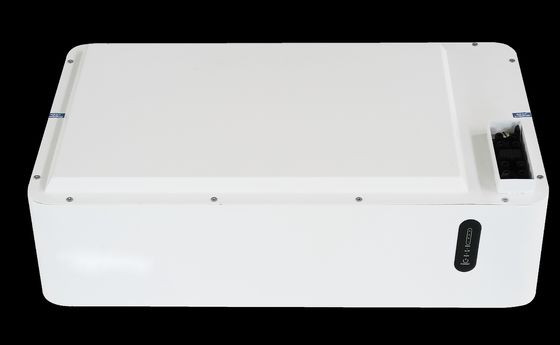

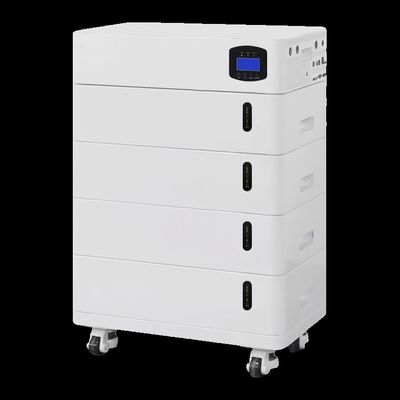

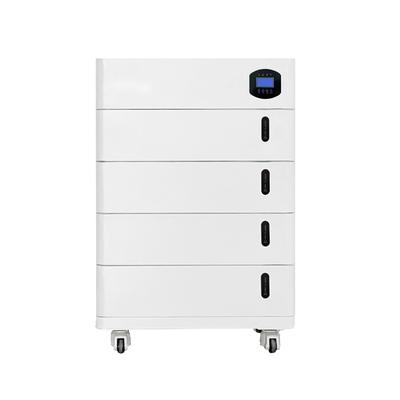

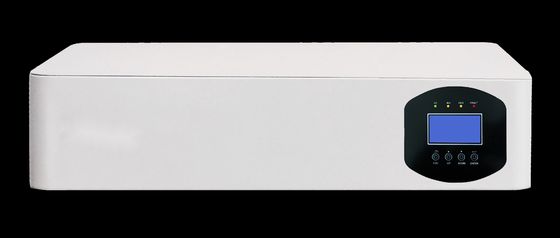

Details Images

Recommend Products

Company Profile

Product packaging

Certifications

FAQ

1. Is the freight on the website accurate?-Please contact us before you order,the default freight on the website is basically
calculated according to the usual air freight price, different countries,differentorder weight, different freight. Please contact
us in time, we will provide you with the best shipping way and accurate freight.

2. The delivery time set on your system is 15 days, do I really need to wait so long?
-No, if it is not a customized order, we usually send it out within 3 -5working days.

3. Does the shipping way to our country include tax?
-It depends on the country and the shipping way you choose. Most Asian countries, most European countries, the United States, and
Canada have tax-included shipping channels.

4. Why the transportation time is so long and the tracking number not updated in nearly a month?
-As you know, the battery (especially the high-power battery) is special commodity, the terms of transportation are very strict.
We transit our products by formal DG logistic channel, it is more slowly than the normal logistic, because it needs wait the DG
ship/train schedule. Due to the particularity of the product and logistic, the tracking number we provide will not updated before
the goods passes the customs in your country. Don't worry, your goods is still in normal transit. When the goods passes through
the customs in your country, the tracking information will updated, and you will receive it within 3-5 days.

5. Is this product safe?
-Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion
at any circumstance.

6. How to confirm the high quality of the product you sent me?
-Our batteries are all grade A, No matter how many you order, we will test each product before sending out.

7. The battery is so heavy, will it damaged easily on the road?
-This is also a matter of great concerm to us. After long-term improvement and verification, our packaging is now very safe and
reliable. When youopen the package, you will definitely feel our sincerity.

8. Is it OK to print my logo on the product?
-Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
